FigureA3.7

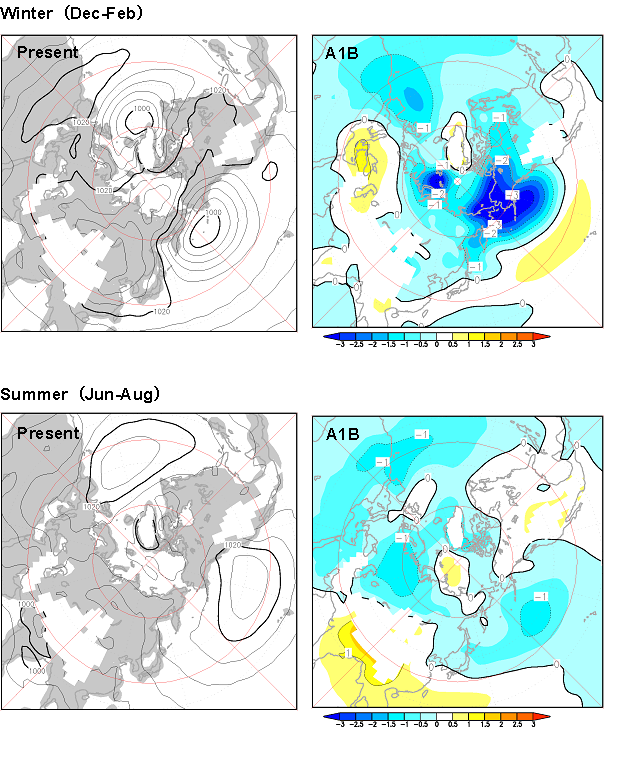

Figure A3.7 Projections of sea level pressure in winter (December - February, top) and summer (June - August, bottom) from the five-member ensemble
Altitudes in white areas are above 1500 m. (left) For the period 1981 - 2000 from historical experiments. (right) Changes for the period 2081 - 2100 relative to the period 1981 - 2000 for scenario A1B.
