9V5023 observation along PX40
Observing period : 2025/8/22 - 2025/9/4
Number of stations : 183

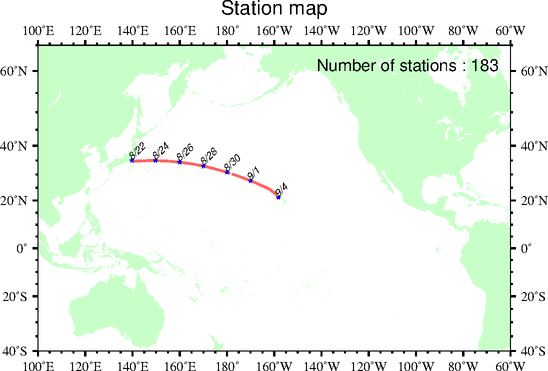

station map
Vertical profiling data
Vertical profile of temperature along the observing line of KALAMAZOO. moved the entire profile by 5 degree Celsius.
Vertical profile of temperature

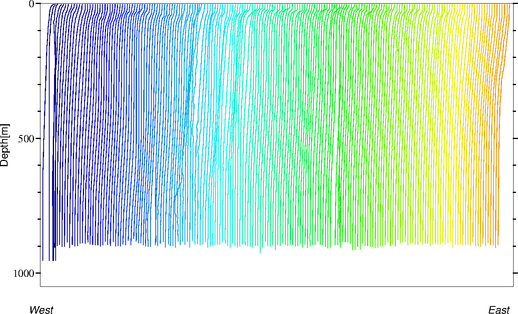

water fall
JMA Assimilation Model
Comparison result

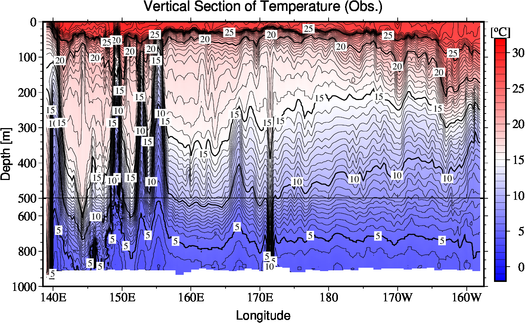

Vertical sections of the observation.
observation

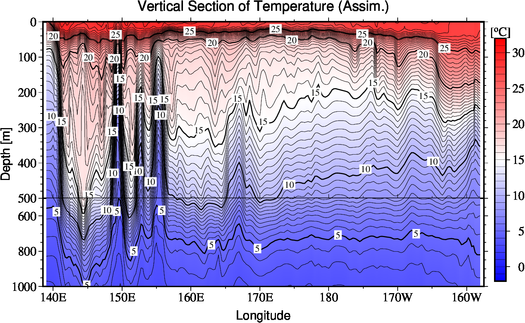

Vertical sections of the result of assimilation.
result of assimilation

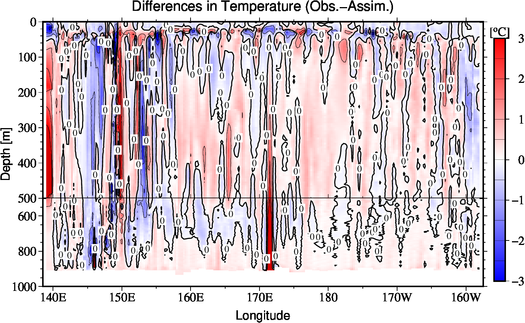

Vertical sections of the difference(observation - result of assimilation) along the observing line of KALAMAZOO.
difference(Obs.-Assim.)
