4. Tables and Figures

Future climate projected by CRCM and NPOGCM

4. Temperature extremes in winter

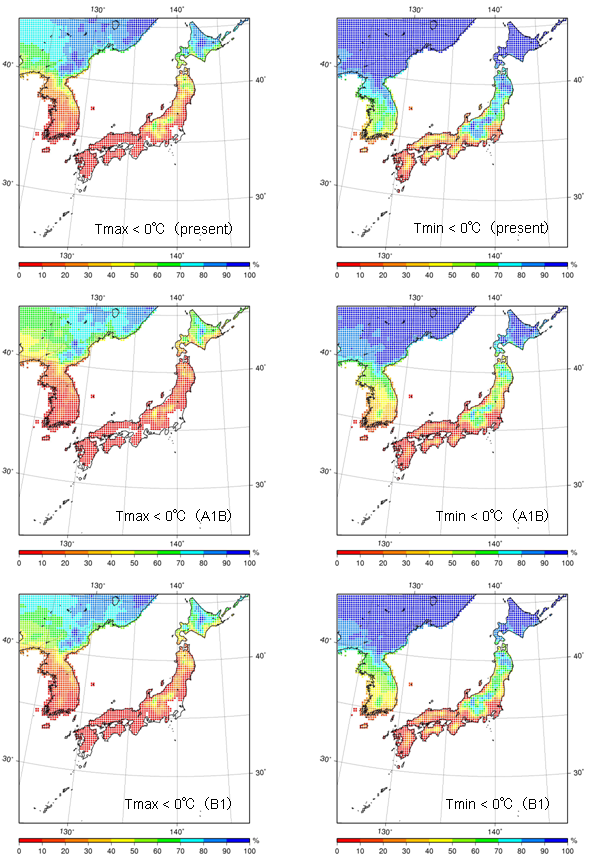

Figure 4.1 Projected rates of the number of days with daily maximum temperatures below 0°C and daily minimum temperatures below 0°C in winter (December - March) for the present (top), scenarios A1B (middle) and B1 (bottom)
'Present' is average for the period 1981 - 2000 and 'A1B' and 'B1' are for 2081 - 2100. White areas indicate 0 %. The values of the present climate are not based on the observation but the results of the model simulation.
