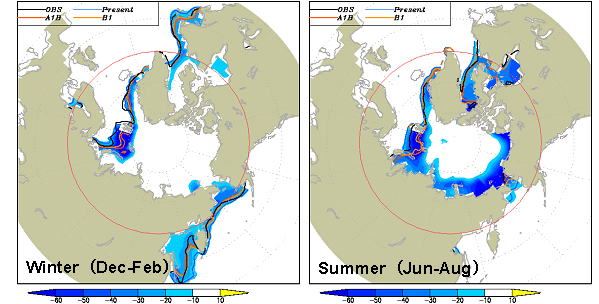

Figure A3.5 Lines of sea ice concentration 15% from observation and simulation, and the rates of change in sea ice concentration for scenario A1B for the period 2081 - 2100 relative to the period 1981 - 2000 (%)
Left panel is for winter (December - February) and right panel is for summer (June - August). The results from simulation are based on the five-member ensemble. Black lines show observation from SSM/I and color lines show simulations from the CGCM 2.3.2: blue represents historical experiment, red represents A1B scenario experiment and orange represents B1 scenario experiment.
