4. Tables and Figures


3. Future climate projected by CGCM2.3.2

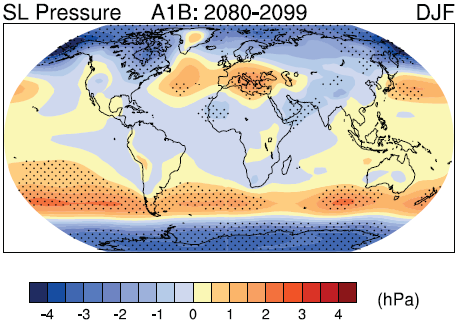

Figure A3.8 Projection of change in sea level pressure in winter (December - February) for scenario A1B based on multi-model ensemble (hPa) for the period 2080 - 2099 relative to the period 1980 - 1999.
Stippling denotes areas where the magnitude of the multi-model ensemble mean exceeds the inter-model standard deviation (cited from Chapter 10 of the report of working group I to the IPCC Fourth Assessment Report).
